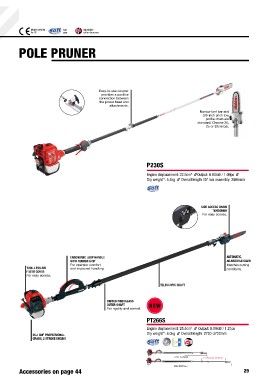

Page 29 - Shindaiwa Flipping book

Model certified Soft Adjustable
for CE start cutter clearance

POLE PRUNER

Easy-to-use coupler
provides a positive

connection between
the power head and

attachments.

Narrow kerf bar and
3/8-inch pitch low
profile chain are

standard. Choose 20,
25 or 30cm bar.

P230S

Engine displacement: 22.5cm3 // Output: 0.80kW / 1.09ps //
Dry weight*1: 5.4kg // Overall length 10" bar assembly: 2805mm

SIDE ACCESS CHAIN
TENSIONER

For easy access.

TOOL-LESS AIR ERGONOMIC LOOP HANDLE AUTOMATIC,
FILTER COVER WITH RUBBER GRIP
For easy access. For operator comfort ADJUSTABLE OILER
and improved handling.
Matches cutting
conditions.

TELESCOPIC SHAFT

RIBBED FIBERGLASS NEW
OUTER SHAFT
For rigidity and control.

25.4 CM3 PROFESSIONAL PT266S
GRADE, 2 STROKE ENGINE
Engine displacement: 25.4cm3 // Output: 0.89kW / 1.21ps
Dry weight*1: 8.0kg // Overall length: 2720-3720mm

2,720 - 3,720mm 4’ Extension 1,200mm
MAX 4,920 mm

Accessories on page 44 29
