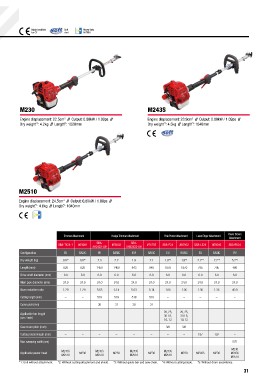

Page 31 - Shindaiwa Flipping book

Model certified Soft Heavy duty
for CE start air filter

M230 M243S

Engine displacement: 22.5cm3 // Output: 0.80kW / 1.09ps // Engine displacement: 23.9cm3 // Output: 0.80kW / 1.09ps //
Dry weight*1: 4.2kg // Length*1: 1020mm Dry weight*1: 4.5kg // Length*1: 1040mm

M2510

Engine displacement: 24.5cm3 // Output: 0.80kW / 1.09ps //
Dry weight*1: 4.6kg // Length*1: 1040mm

Trimmer Attachment Hedge Trimmer Attachment Pole Pruner Attachment Lawn Edger Attachment Power Broom
SBA-TX24-1 #65001 Attachment
Configuration SBA- #65003 SBA- #78703 SBA-P24 #65002 SBA-LE24 #65010
EU BASIC AH2422-LW BASIC AHS2422-LW BASIC EU BASIC EU BASIC SBA-PS24

EU EU EU

Dry weight (kg) 0.8*2 0.8*2 2.3 2.2 1.9 2.1 1.8*3 1.8*3 2.2*4 2.2*4 5.2*5

Length (mm) 820 820 1459 1460 843 840 1870 1870 795 795 480

Drive shaft diameter (mm) 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0

Main pipe diameter (mm) 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0

Gear reduction ratio 1.29 1.29 5.63 6.14 5.63 6.14 1.06 1.06 1.36 1.36 40.0

Cutting length (mm) − − 519 519 519 519 − − − − −

Cutter pitch (mm) − − 30 31 30 31 − − − − −

Applicable bar length 20, 25, 20, 25,
(cm / inch)
−−−− − − 30 / 8, 30 / 8, − − −

10, 12 10, 12

Saw chain pitch (inch) −−−− − − 3/8 3/8 − − −

Cutting blade length (mm) − − − − − − − − 197 197 −

Max. sweeping width (mm) − − − − − − − − − − 575

Applicable power head M243S M230 M243S M230 M243S M230 M243S M230 M243S M230 M230
M2510 M2510 M2510 M2510 M243S
*1: Unit without attachment. M2510

*2: Without cutting attachment and shield. *3: Without guide bar and saw chain. *4: Without cutting blade. *5: Without drum assemblies.
